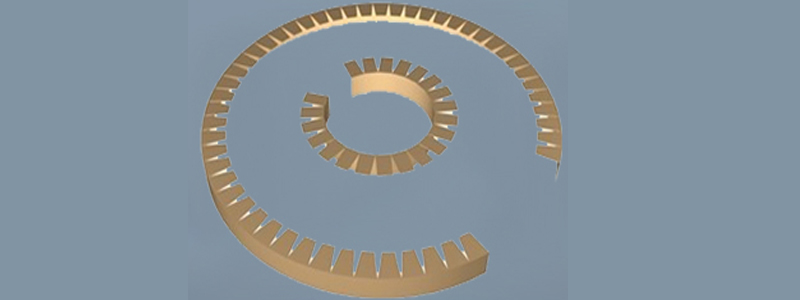

Reel Edge Protectors
Paper angle boards reel edge protectors are specialized paper corner protectors designed specifically for the packaging and protection of reels or cylindrical objects. These edge protectors are typically made from sturdy cardboard or paperboard material and are specifically shaped to fit the contours of cylindrical objects, such as cable reels, wire spools, or rolled materials.
Product composition :1. 100% kraft paper
2. Environment friendly glue
3. Golden yellow / white in color
Performance :
1. Strong & consistent
2. Excellent protection of coils & rolls
3. 100% recyclable
4. Sizes to suit requirements
Available sizes :
1.30 mm x 30 mm – thickness 2.5 / 3 mm
2.35 mm x 35 mm – thickness 3 mm
3.40 mm x 40 mm – thickness 3 mm
4.50 mm x 50 mm – thickness 3 mm
5.75 mm x 75 mm – thickness 3 mm
6.Lengths are available from 1000 mm to 5000 mm
Tolerances :
1.Length : +/- 5 mm
2.Thickness : 0.4 mm (avg of 2 width)
3.Width : +/- 5 mm
4.Angle degree : +/- 10 degree
Remarks :
1.Other sizes can be made on customers demand
2.Colors of paper can vary on lot to lot
Our all products are manufactured with recyclable material and have zero impact on environment.
